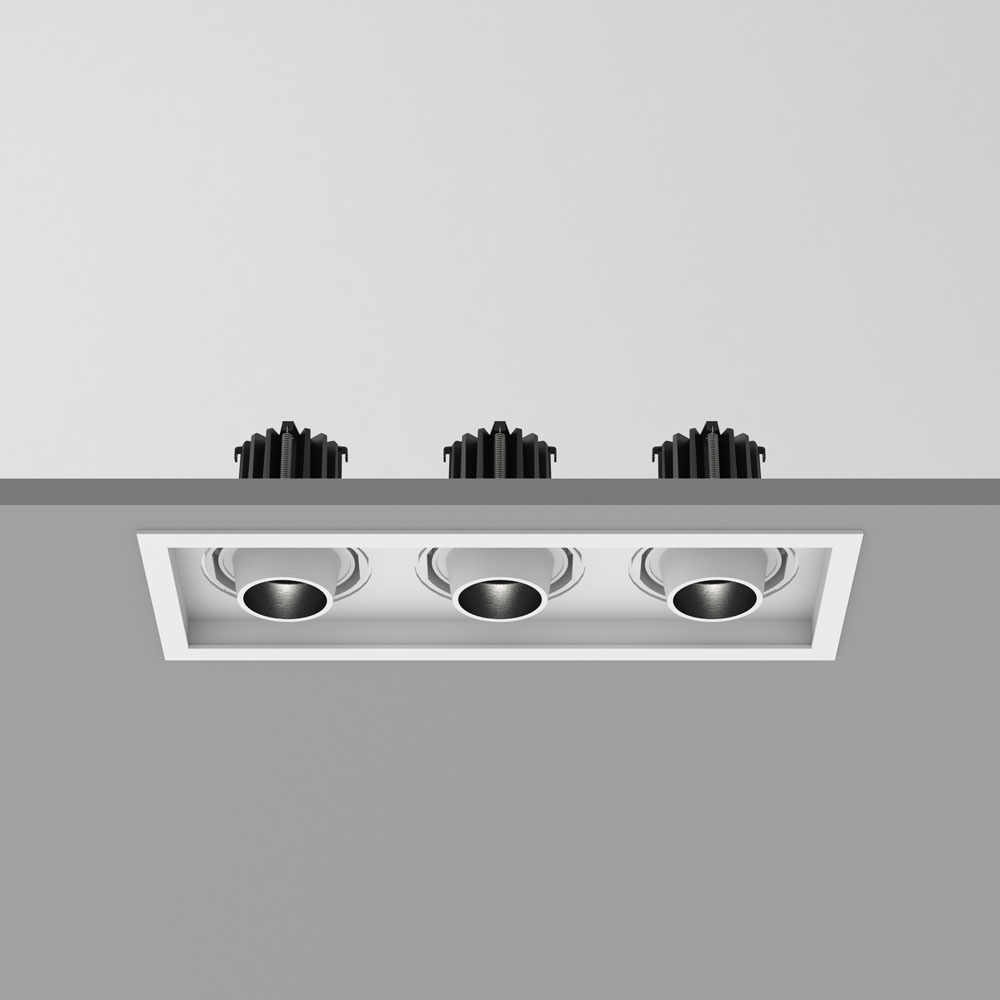

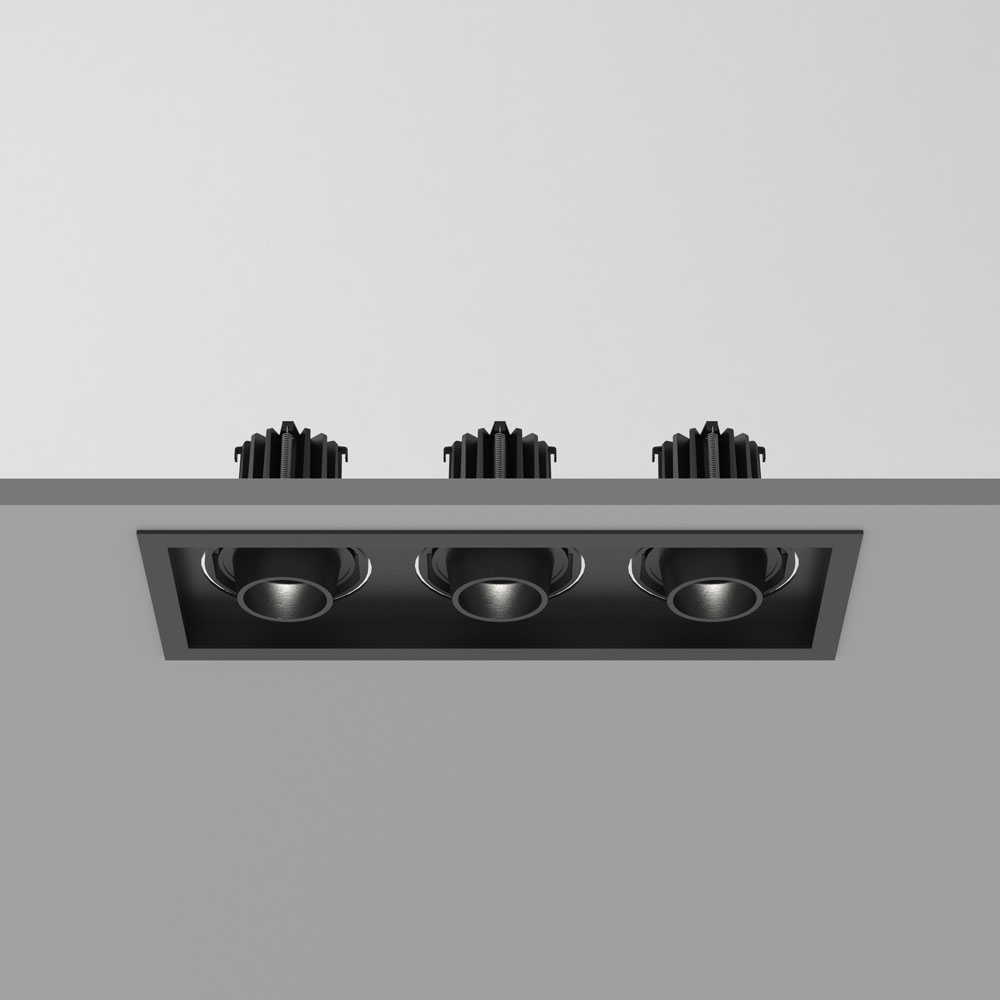

Gimbal Triple Medium



Gimbal Triple Medium

‘Gimbal Triple Medium’ is a triple adjustable (tilt 45°) downlight, with glare snoot, in a family with matching single and double options.

The ‘Gimbal’ family is designed for uniformity in appearance and light quality. Available with a selection of light engines common across the whole accent range, common light quality and appearance is achievable between pendants, recessed / surface downlights and spot options.

'Light engines' are available in varying output, colour temperature / warm dimmable, colour rendering and beam angles with interchangeable lenses.

‘Gimbal Triple Medium’ downlight is supplied with a powder coated aluminium trim, sold complete with your selected 'light engine' integrated control gear in multiple control options. A range of optical accessories can be added as required.

OPTIONS

6W

ACCESSORIES

SPECIFICATIONS (PER LED)

Recessed
6-22mm

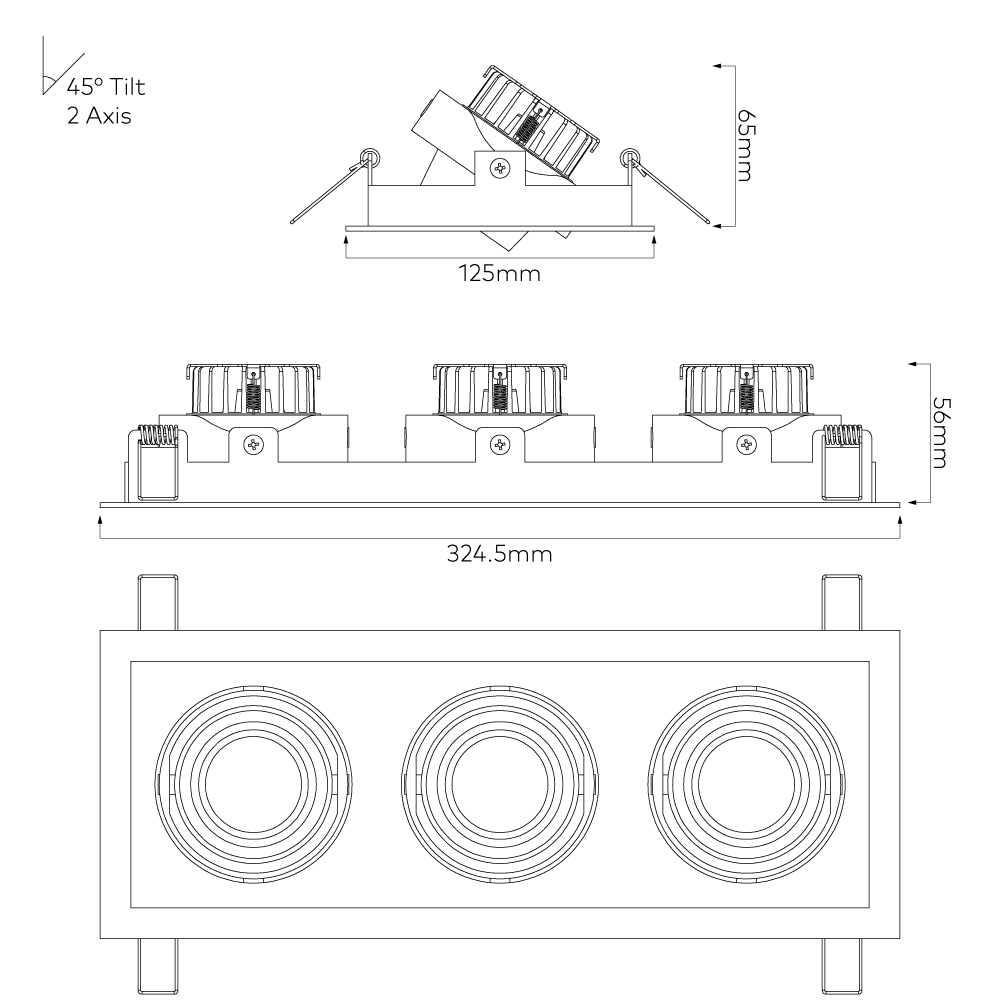

307x114mm
Remote constant current
IP20
90Ra
18V DC
2 Step MacAdam ellipse
>60,000 hrs
350mA Constant current
