Tube Wall Up-Down Mini



Tube Wall Up-Down Mini

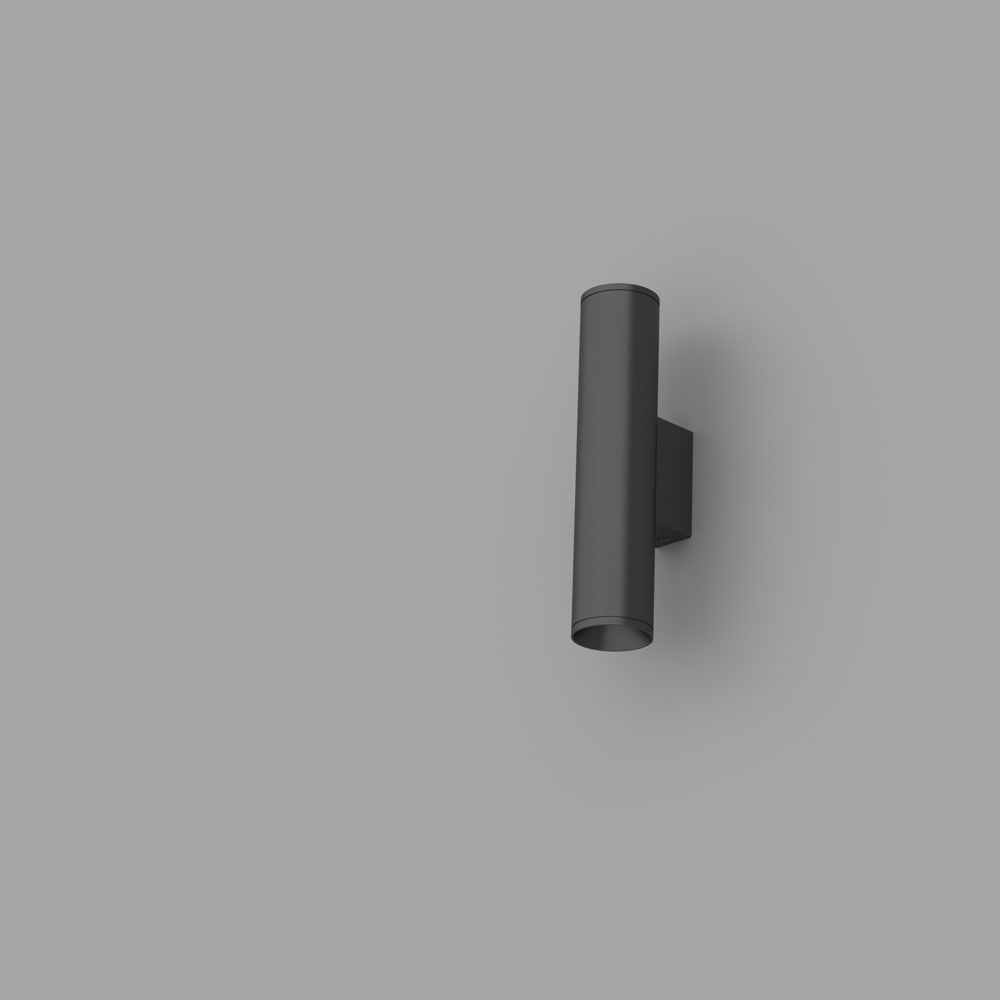

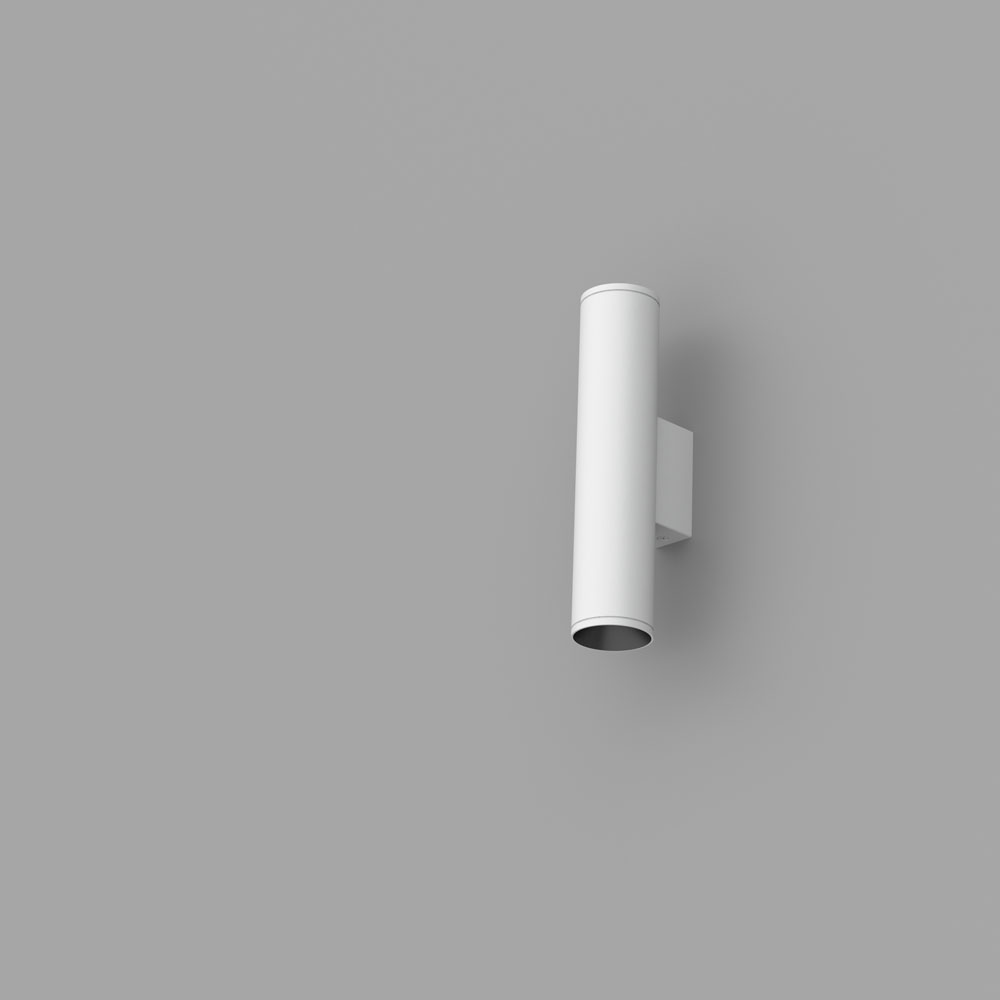

'Tube' wall up / down mini is a simply styled surface mounted wall light, in a family with matching spotlights, surface downlights and pendants.

The 'Tube' family is designed for uniformity in appearance and light quality. Available with a selection of light engines common across the whole accent range, common light quality and appearance is achievable between pendants, wall lights, recessed / surface downlights and spot options.

'Light Engines' are available in varying output, colour temperature, colour rendering and beam angles with interchangeable lenses. 'Tube' wall up / down mini is supplied with a powder coated extruded aluminium housing. A range of optical accessories can be added as required.  Integral drivers are supplied for Non-dim and phase dim options and remote drivers supplied for 0-10V and DALI options.



OPTIONS

2W

SPECIFICATIONS (PER LED)

Non-Dim, Phase : Integral. 0-10V, DALI : Remote
IP20
90Ra
9V DC
2 Step MacAdam ellipse
>60,000 hrs
250mA Constant current
