Bevel Flute Fixed Medium



Bevel Flute Fixed Medium

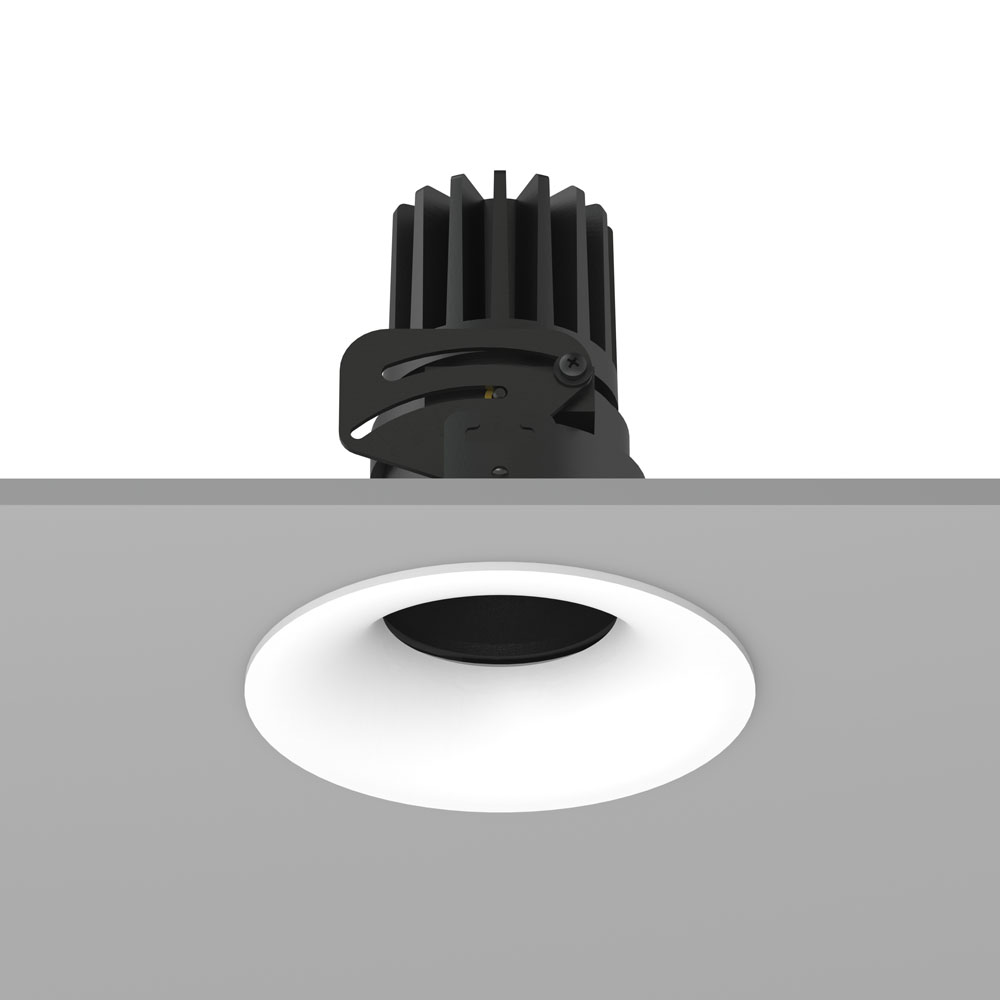

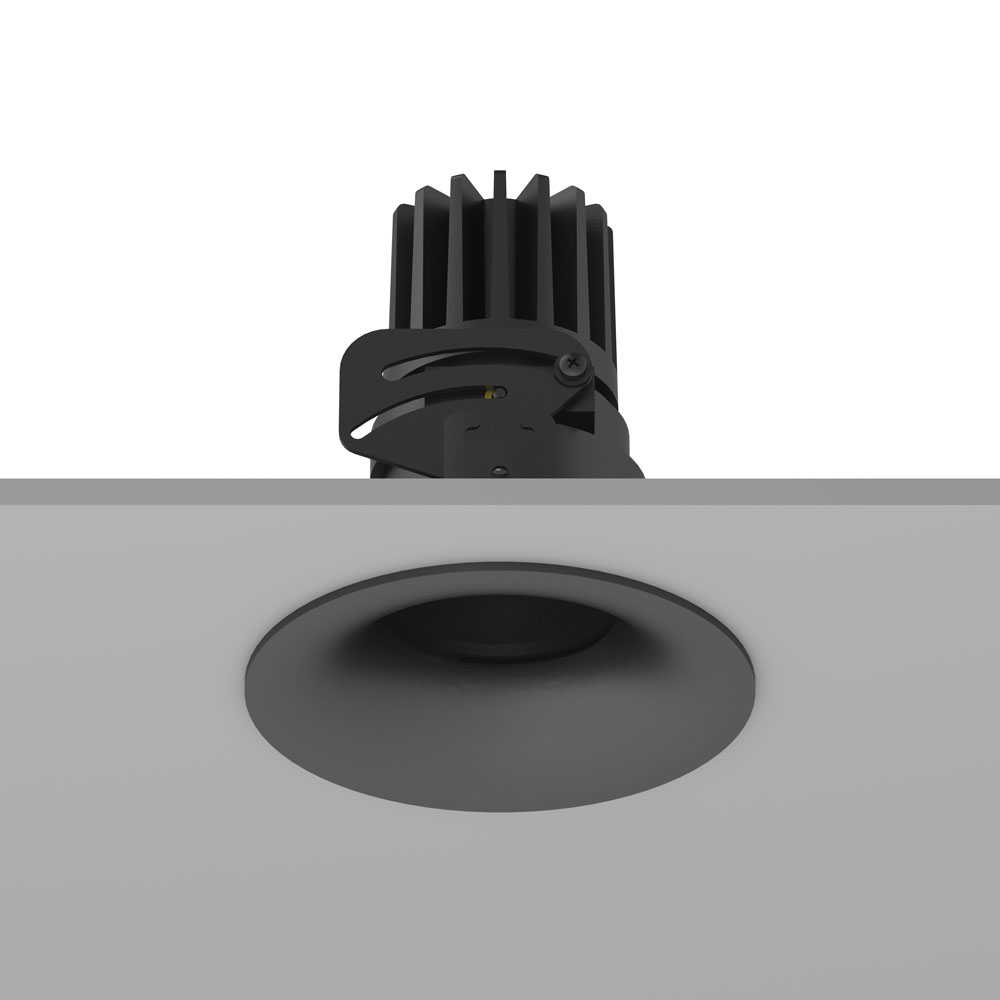

'Bevel' FIXED medium, is a deep regressed fixed downlight, with a minimal trim, designed with a family of adjustable and wallwash options in the same size to ensure uniformity of appearance when used in the same space.

Available with a selection of 'light engines' that are common across the "Accent" range to achieve common light quality and appearance between recessed / surface downlights, wall lights, pendants and track spots. 'Light engines' are available in varying output, colour temperature, colour rendering, warm dimmable and beam angle options.

The engine can be deep set with a baffle accessory for enhanced visual comfort or left shallow for use in restricted ceiling zones. 'Bevel' FIXED medium is a powder coated aluminium housing, sold complete with your selected 'Light Engine' inclusive of compatible control gear, also available in multiple control options.

OPTIONS

Warm Dim 2700°K - 1800°K
12W Warm Dim
IP20

ACCESSORIES

SPECIFICATIONS

Recessed
Ø98mm
Remote constant current
IP20
Amplitude Dimming (PWM not compatible)
90Ra
36V DC
Bridgelux
12W - Warm Dim
50,000hrs
350mA Constant current
