Bevel Wallwash Medium Zero



Bevel Wallwash Medium Zero

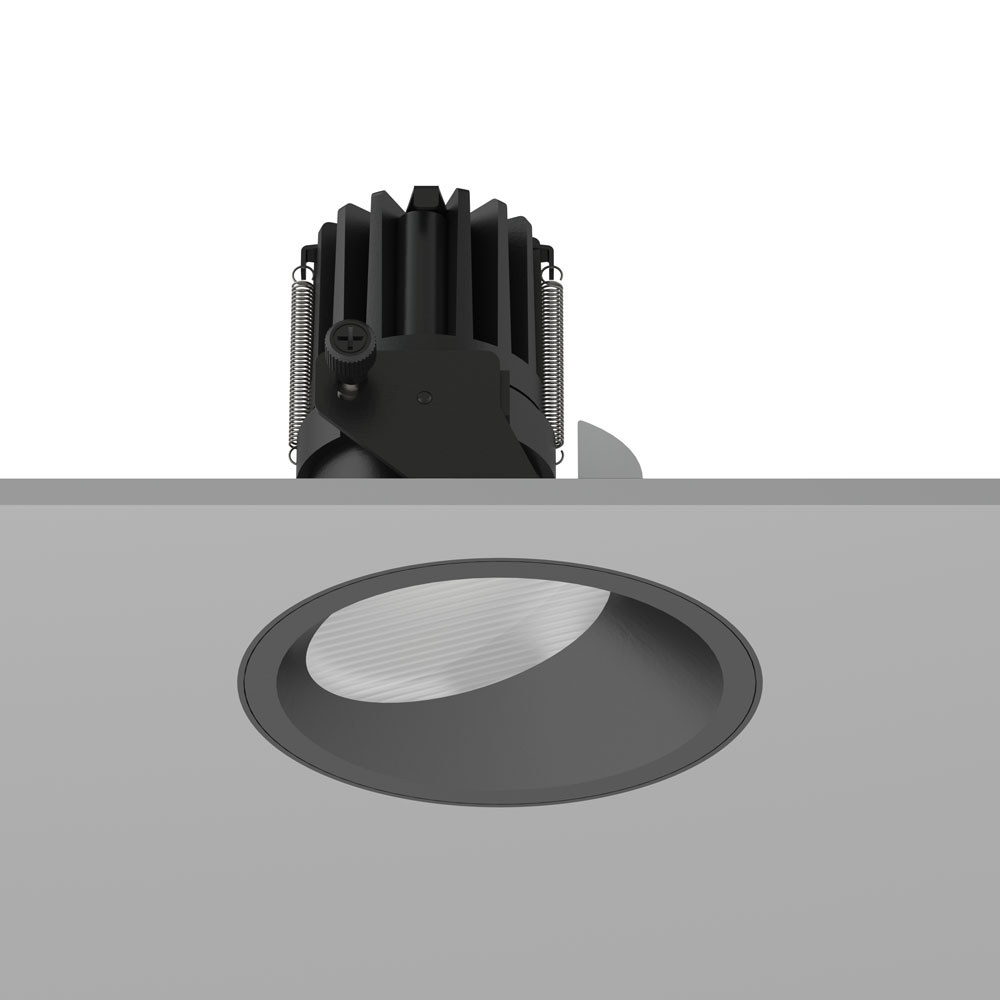

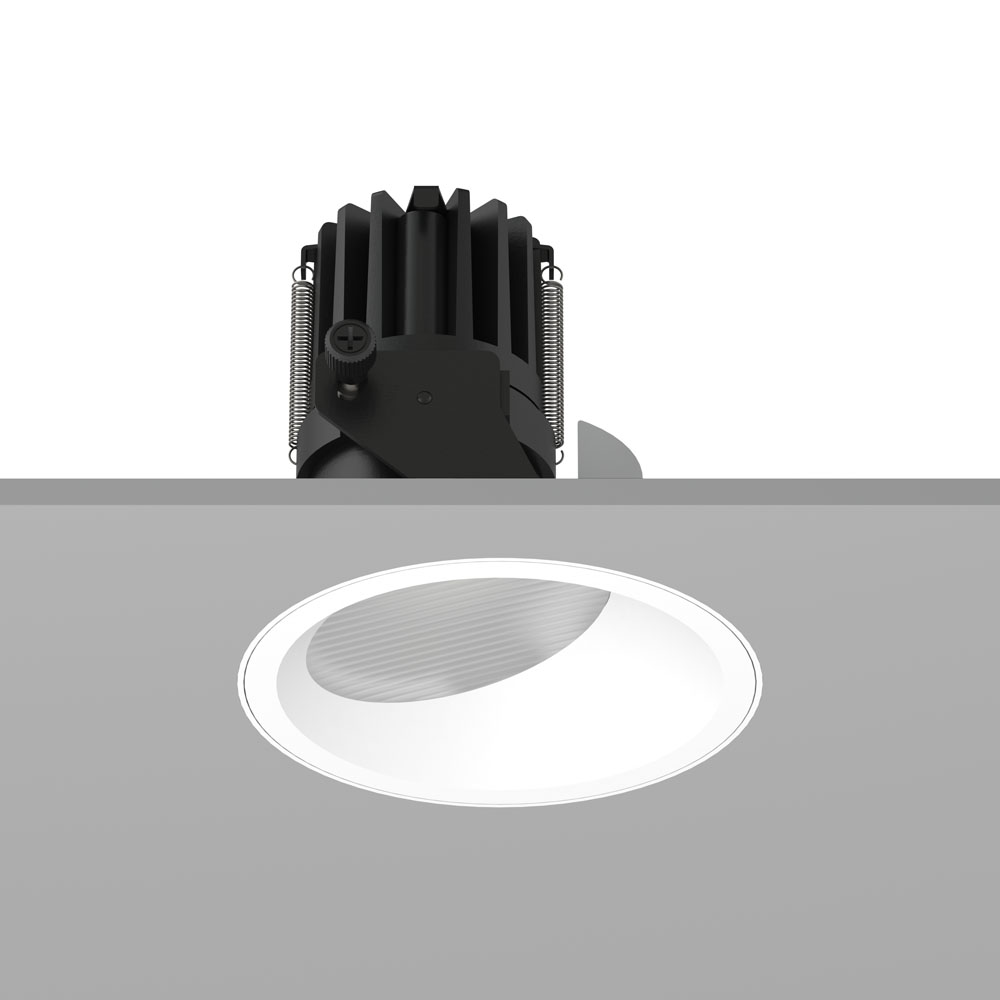

'Bevel' WALLWASH medium, is a dedicated wall wash downlight, with a sculptural lens for uniform vertical illumination. It is supplied with a plaster in trim, designed with a family of fixed and adjustable options in the same size to ensure uniformity of appearance when used in the same space.

Available with a selection of 'light engines' that are common across the "Accent" range to achieve common light quality and appearance between recessed / surface downlights and track spots. 'Light engines' are available in varying output, colour temperatures / warm dimmable, colour rendering and beam angles with interchangeable lenses.

The 'light engine' can be tilted by 15degrees to suit different wall offsets and ceiling heights. 'Bevel' wall wash medium is supplied with a powder coated aluminium housing, pre-installed frosted spreader lens, sold complete with your selected 'Light Engine' inclusive of compatible control gear, also available in multiple control options.

OPTIONS

35°
12W

SPECIFICATIONS

Recessed - Plaster In
Ø115mm
Remote constant current
IP20, IP44 Options
90Ra
36V DC
2 Step MacAdam ellipse
12W
>60,000 hrs
350mA Constant current
