Gimbal Round Trimless Medium



Gimbal Round Trimless Medium

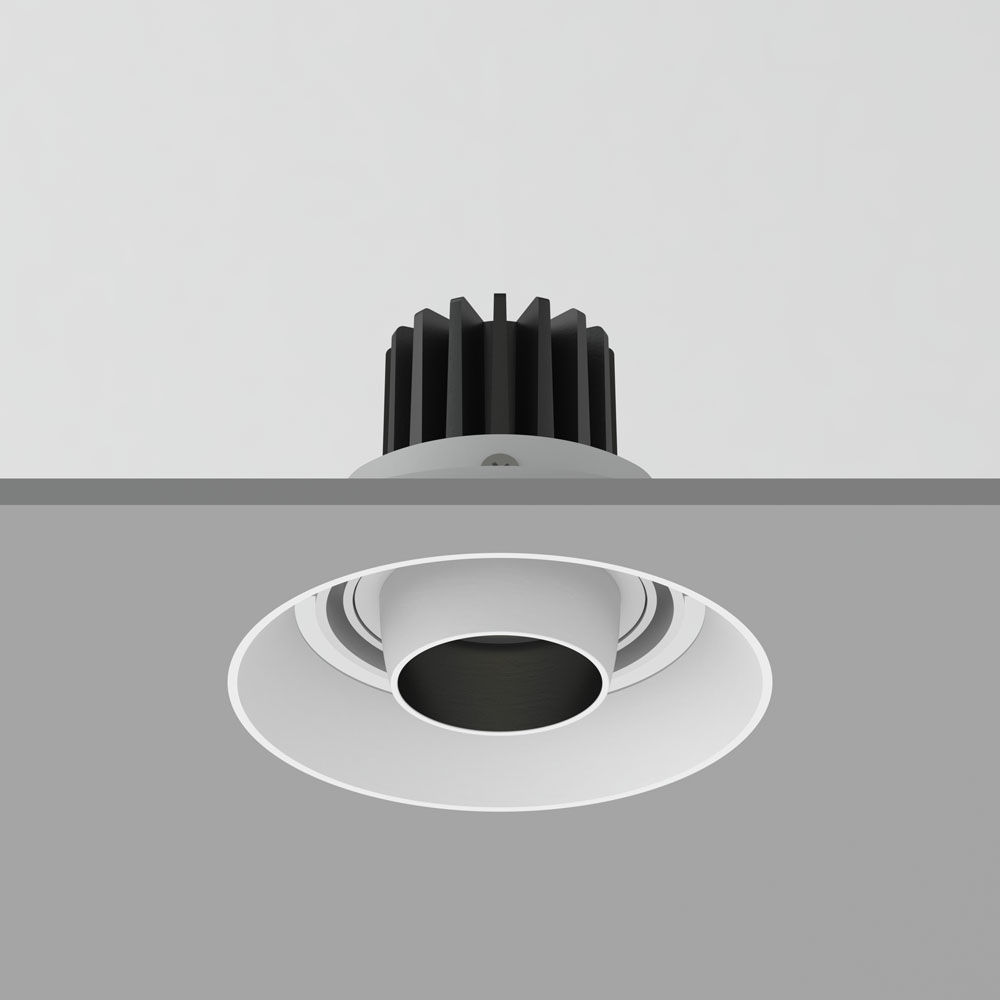

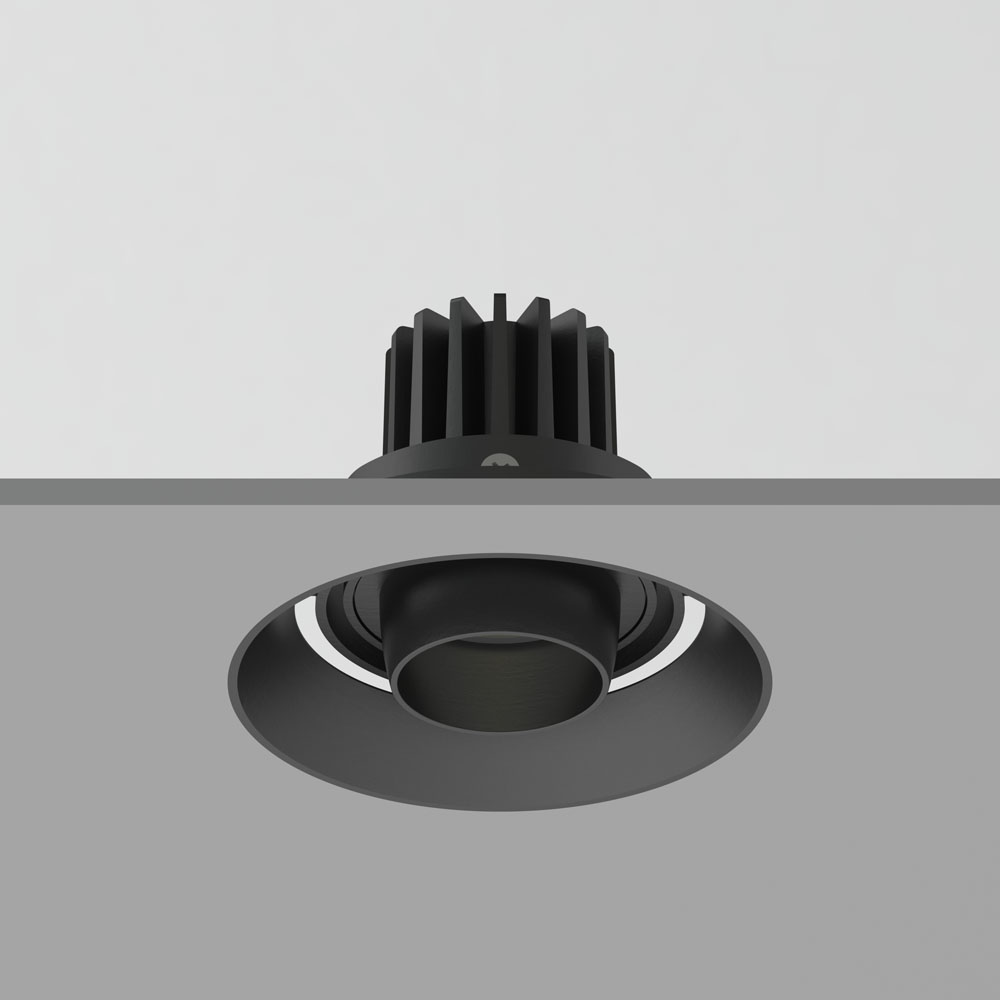

‘Gimbal Round Trimless Medium’ is a trimless, plaster in adjustable (tilt 45°) downlight, with glare snoot, in a family with matching standard option. The ‘Gimbal’ family is designed for uniformity in appearance and light quality.

Available with a selection of light engines common across the whole accent range, common light quality and appearance is achievable between pendants, recessed / surface downlights and spot options.

'Light engines' are available in varying output, colour temperature / warm dimmable, colour rendering and beam angles with interchangeable lenses.

‘Gimbal Single Medium’ downlight is supplied with a powder coated aluminium trim, sold complete with your selected 'light engine' integrated control gear in multiple control options. A range of optical accessories can be added as required.

OPTIONS

Warm Dim 2700°K - 1800°K
12W Warm Dim

ACCESSORIES

SPECIFICATIONS

Recessed - Plaster In
6-25mm
Ø115mm
Remote constant current
IP20
45° 2 Axis
Amplitude Dimming (PWM not compatible)
90Ra
36V DC
Bridgelux
12W - Warm Dim
50,000hrs
350mA Constant current
