Pinhole Fixed Medium



Pinhole Fixed Medium

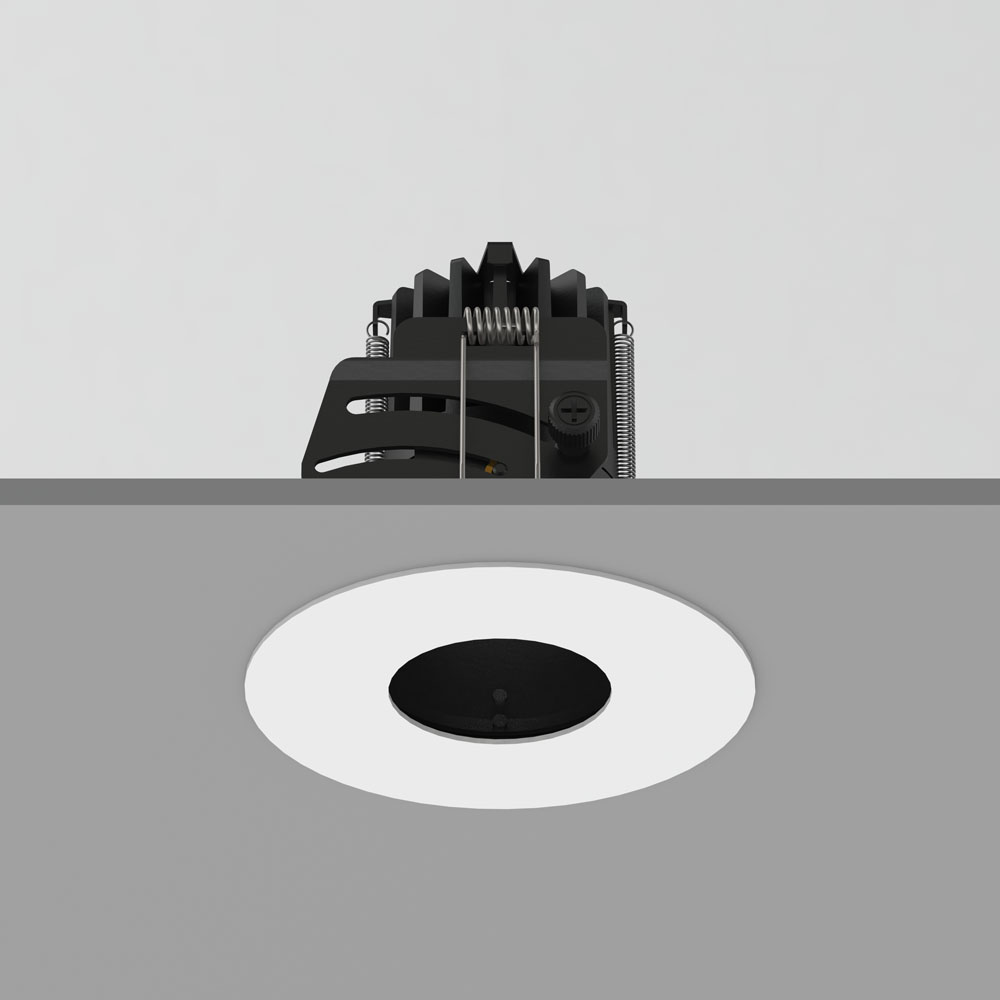

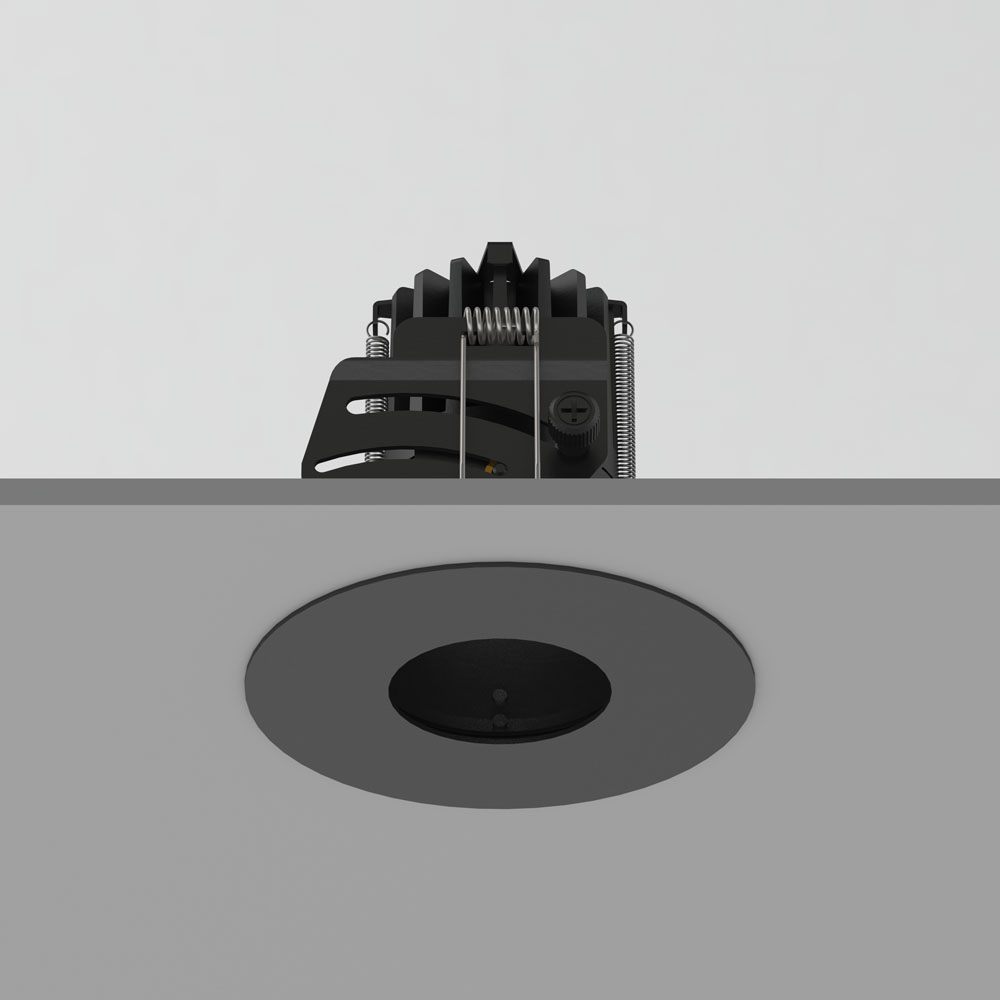

'Pinhole' FIXED medium, is a concealed fixed downlight, designed with a matching adjustable version in the same size to ensure uniformity of appearance when used in the same space.

Available with a selection of 'light engines' that are common across the "Accent" range to achieve common light quality and appearance between recessed / surface downlights and track spots.

'Light engines' are available in varying output, colour temperature / warm dimmable, colour rendering and beam angles with interchangeable lenses.

'Pinhole' fixed medium is supplied with a powder coated aluminium housing, supplied complete with your selected 'Light Engine' inclusive of compatible control gear, also available in multiple control options.

OPTIONS

12W

ACCESSORIES

SPECIFICATIONS

Recessed
6-30mm
Ø95mm
Remote constant current
IP20, IP44 Options
90Ra
36V DC
2 Step MacAdam ellipse
12W
>60,000 hrs
350mA Constant current

PHOTOMETRIC SPECIFICATIONS

0
0
0
Click To View
Click To View

Downloads
